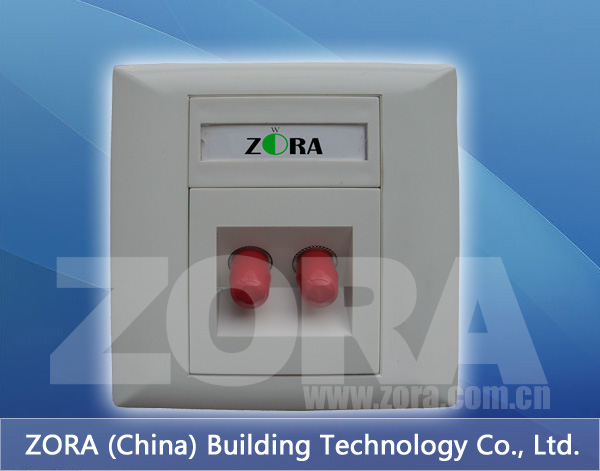

Dual-port fiber termination box

Fiber ProductsFiber panel

15423

    The fiber panel is mainly used for fixing module, and protecting the cable at information outlet like a screen. It is connected with SC flange disc, quick connector for fiber, and fiber patch cord. For wiring system, fiber desktop box is not the main part which will influence the performance, whereas, in the whole wiring system, it is one of the few exposed surface products.

Features:

     FTTD fiber desktop panel is a protection device for the transmission media in FTTD work area, and is the interface that directly contacts with user. FTTD fiber desktop panel manufactured by our company has the following features:
● The proportion of the panel outline conforms to Type 86.
● The fiber desktop panel adopts separated bottom and cap, which is convenient for management and maintenance;
● The fiber desktop is equipped with two positions for fixing fiber adapter and holes for inlet and outlet of tail fiber or rubber-insulated fiber cable, which can realize the access of single core or double core fiber and output, and can well protect the inlet and outlet fiber, so as to complete FTTP (fiber to the desk) applications safely, and meet the requirements of input of double core optical fiber and terminal output during FTTD cabling.
● The panel is equipped with a boss for coiling up fiber in the bottom, which is convenient to reserve fiber or superfluous fiber. This design can meet the requirements of bend radius of fiber and storage of small quantity of superfluous fiber, and provide safety guard for inlet and outlet fiber.

Specification:

● Size：86mm×86mm 86mm×110mm
● Specification: external dimension: 86mm×86mm 86mm×110mm
● Color: Porcelain white
● Material: non metal material – ABS engineering plastic
